PWB-80LV
Description:

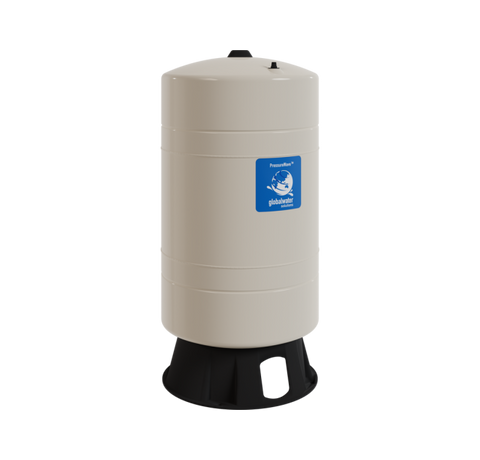

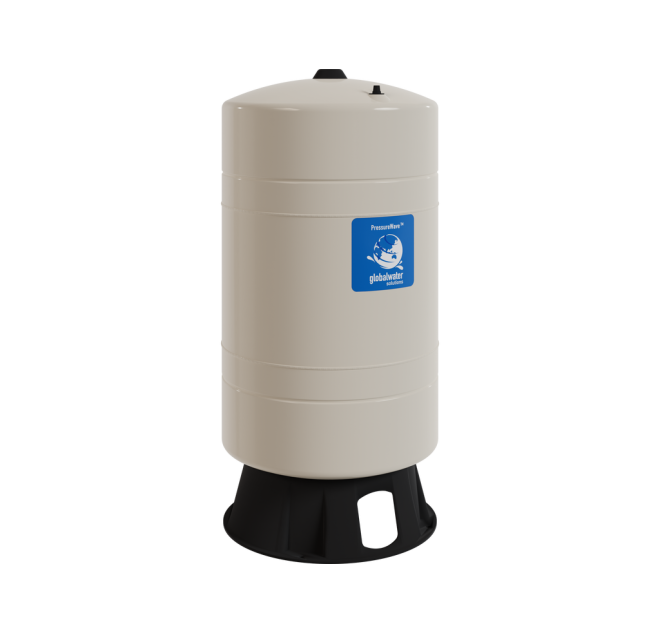

The PressureWave™ 80-liter / 21.13-gallon vertical pressure tank is designed to optimize space efficiency while delivering robust performance. Its virgin polypropylene liner and high-grade butyl diaphragm are clench-ring secured and reinforced for enhanced durability. The patented stainless-steel water connection ensures a dual water/air seal, preventing leaks and reducing maintenance.
This vertical tank, featuring a 1" BSPP connection and pre-charged to 1.9 bar / 28 psi, is ideal for booster systems, thermal expansion, and hydraulic hammer arresting. Its carbon steel shell, finished with a dual-layer polyurethane coating, ensures long-lasting protection against corrosion and environmental damage.
This vertical tank, featuring a 1" BSPP connection and pre-charged to 1.9 bar / 28 psi, is ideal for booster systems, thermal expansion, and hydraulic hammer arresting. Its carbon steel shell, finished with a dual-layer polyurethane coating, ensures long-lasting protection against corrosion and environmental damage.
Features:
-
Volume: 80L / 21.13 Gallon
- Connection: 1" BSPP (F)
- Width: 38.9cm / 15.3 inches
- Height: 81.5cm / 32.1 inches
- Diameter: 38.9 cm / 15.3 in
- Weight: 16.6kg / 36.6lbs
- Pressure Max: 10 bar / 150 psi
- Pressure Pre-charge bar: 1.9 bar / 28 psi
- Temp Max: 90°C / 194°F
- Color: Almond
-
Maintenance Free
-
Diaphragm design
-
Patented stainless steel water connection
-
Virgin polypropylene liner
-
Two-part polyurethane, epoxy primed paint finish
-
Leak-free, O-ring sealed air valve cap
-
Inline models equipped with reinforced connection plate (RCP)
