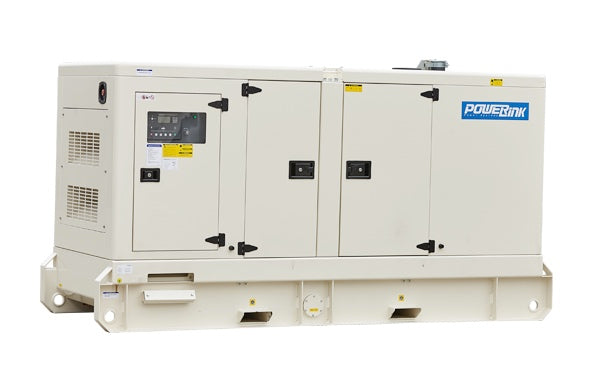

PowerLink Diesel Generator 200kVA

  • Sale
  • Regular price $3,495,000.00


200KVA POWERLINK DIESEL GENERATOR

Description:

  • Cummins engine 6CTAA8.3-G2
  • Close coupled to Stamford alternator UCl274H
  • Microprocessor control module PLC-7420
  • Main circuit breaker: 630A
  • Rotate speed governor: Electrical governor
  • Excitation System: Self-excited
  • A.V.R. Model: AS440
  • Key Switch
  • Emergency stop switch
  • ATS (Automatic Transfer Switch) receptacle
  • 2 x 12V/120AH sealed for life maintenance free battery
  • Lockable battery isolator switch
  • Powder coated canopy
  • 50 degrees celsius radiator
  • Oil Pump on the engine
  • Steel base frame with forkslots
  • Vibration isolators between the engine/alternator and base frame
  • Dry type air filter
  • Base fuel tank for 10 hours running
  • Drain points for fuel tank
  • Operational Manual / Specifications



Features:

  • Model: GMS200CS
  • 50Hz @ 1500 RPM
  • 3-Phase, 4-wire
  • 127v / 220v 209AMPS
  • Structure Type: R
  • Tank Capacity: 470L
  • Dry Weight: 2722kg
  • Sound pressure level @ 7m: 70dB(A)
  • Dimensions (L x W x H): 358.8cm x 132.2cm x 186.8cm
  • Standby Power: 220kVa/176kW
  • Prime Power: 200kVA/525A
