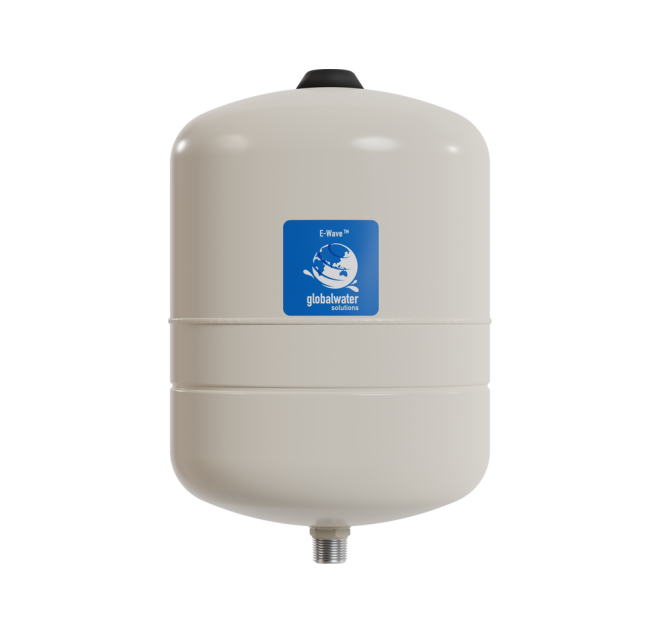

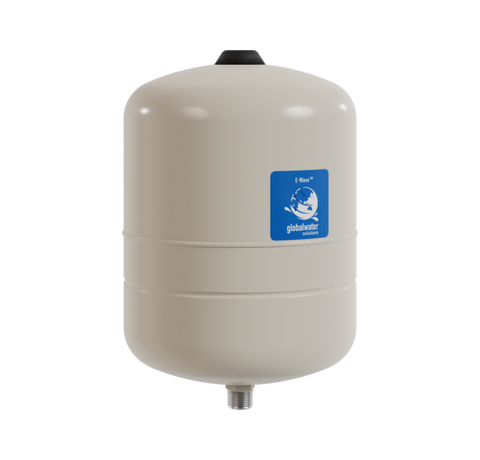

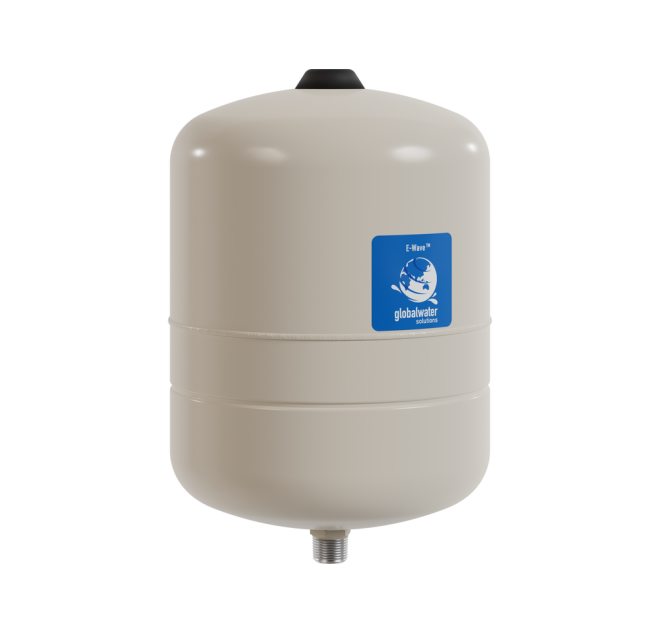

GWS 24L Pressure Tank (6.34 Gallon)

The E-Wave™ 24-liter / 6.34-gallon inline Pressure Tank is an affordable and efficient solution for maintaining consistent water pressure in small households. Designed with a high-grade butyl diaphragm and a virgin polypropylene liner, it ensures reliable air and water separation for long-lasting performance. The patented stainless steel water connection and leak-free O-ring sealed air valve cap guarantee maintenance-free operation. With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this tank is ideal for residential booster systems, thermal expansion, and irrigation applications. The durable carbon steel shell, finished with a dual-layer polyurethane paint, provides excellent corrosion resistance, making it a dependable choice for residential pressure management.

Features:Top of Form

·        Nominal Volume: 24 Liter / 6.34 Gallon

·        Bottom of Form

·        Temp Max: 90°C / 194°F

·        Pressure Pre-charge bar: 1.9 bar / 28 psi

·        Connection: 1" BSPT

·        Color: Almond

·        Pressure Max: 10 bar / 150 psi

·        Diameter: 29cm / 11.4 inches

·        Height: 44.4cm / 17.9 inches

·        Diaphragm design: Maintenance-free

·        Patented stainless steel water connection

·        Virgin polypropylene liner

·        Dual layer polyurethane paint finish

·        Leak-free O-ring sealed air valve
