Description:

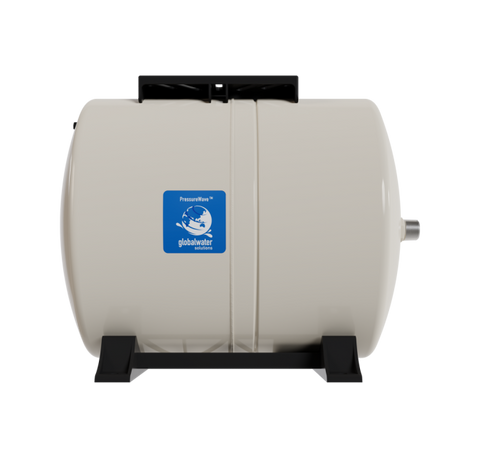

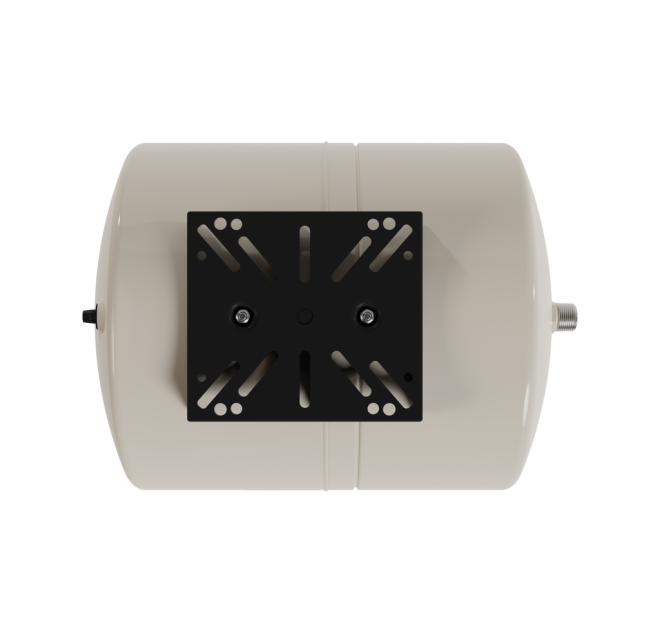

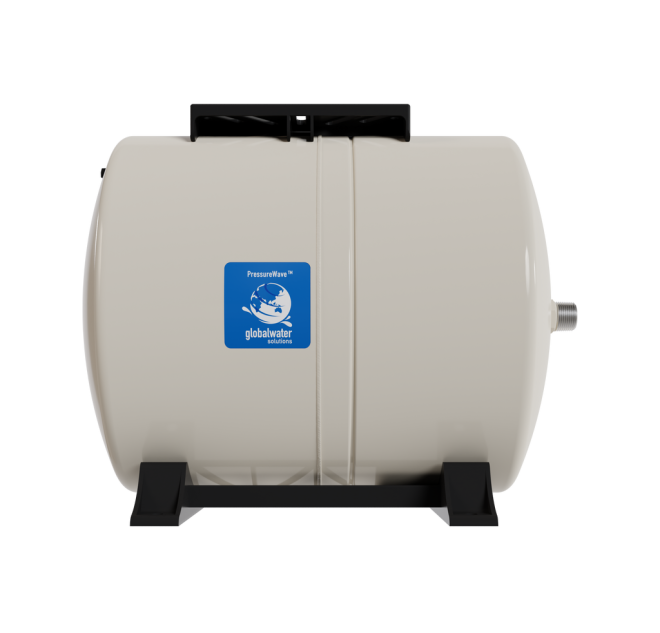

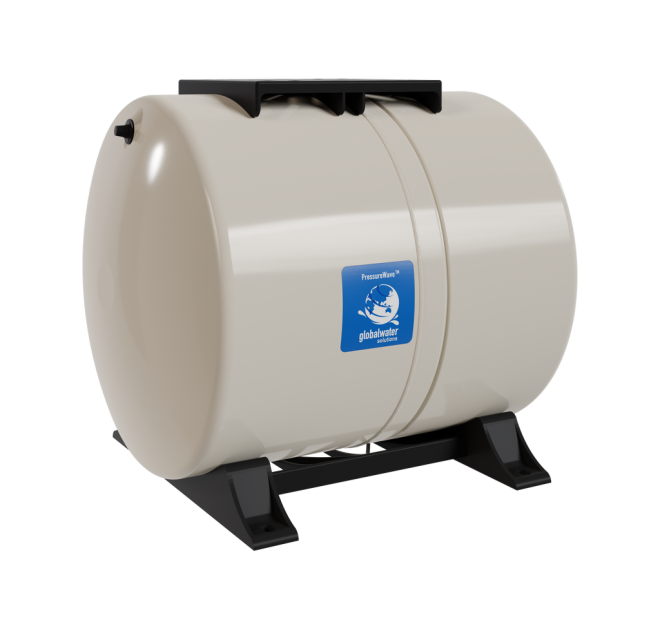

The PressureWave™ 60-liter / 15.85-gallon horizontal pressure tank is designed to deliver reliable performance for medium-sized pressure systems. Its virgin polypropylene liner and high-grade butyl diaphragm ensure extended durability, while the patented stainless-steel water connection provides a dual water/air seal to prevent leaks. The brass air valve, secured with an O-ring, adds to its maintenance-free design.
This tank is pre-charged to 1.9 bar / 28 psi and features a 1" BSPT connection for easy integration. Its robust carbon steel shell, finished with dual-layer polyurethane paint, ensures corrosion resistance. Perfect for booster systems, thermal expansion, and hydraulic hammer arresting, this horizontal tank is a dependable choice.
-
Volume: 60L / 15.85 Gallon
- Connection: 1" BSPT (M)
- Width: 42.3cm
- Length: 53cm
- Weight: 11.7kg / 25.8lbs
- Diameter: 38.9 cm / 15.3 in
- Color: Almond
-
Horizontal
- Pressure Max: 10 bar / 150 psi
- Temp Max: 90°C / 194°F
- Pressure Pre-charge bar: 1.9 bar / 28 psi
-
Diaphragm design: Maintenance Free
-
Patented stainless steel water connection
-
Virgin polypropylene liner
-
Two-part polyurethane, epoxy primed paint finish
-
Leak-free, O-ring sealed air valve cap
-
Inline models equipped with reinforced connection plate (RCP)
