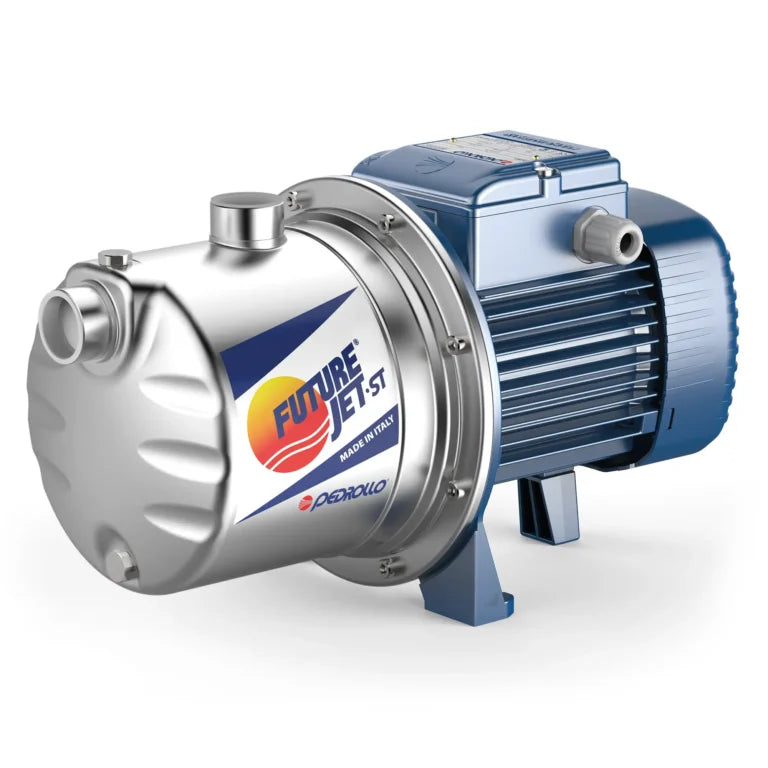

FUTURE JETm 2A-ST
Description:
FUTURE JET-ST self-priming pumps are designed to draw water and liquids that contain air. They are reliable and easy to operate. They are a favorite for domestic use, particularly effective for water distribution with small to medium-sized pressure tanks and suitable for irrigation.
Installation needs to be undertaken in well ventilated closed areas or anyway protected from bad weather.
Features:
- Power: 1.5HP / 1.1kW | 50Hz
- Voltage: 220v | 6.6A
-
Engine Type: Single-Phase
- Pump Body: Stainless Steel AISI 304, provided with ISO 228/1 threaded ports
- Nozzle Assembly: Noryl
- Motor Shaft: Stainless Steel AISI 431
- Impeller: Stainless Steel AISI 304
- Inlet: 1"
- Outlet: 1"
-
Liquid type: Clean Water
-
Uses: Domestic, Civil
-
Applications: irrigation pumps, washing systems, water supply systems, liquids transfer, fire-fighting sets, pressure systems
-
Typology: Surface
-
Family: Self-Priming
-
Dimension (L x W x H): 39.3cm x 20.8cm x 21.7cm
- Weight: 26.5lbs
Performance Range:
- Flow rate up to 120 l/min (7,2 m³/h)
- Head up to 59 m
Application Limit:
- Temperature of the liquid from -10 °C to 40 °C
- Ambient Temperature +40 °C
- Manometric suction lift up to 9 m (HS)
- Max. working pressure 6 bar
- Continuous service S1
