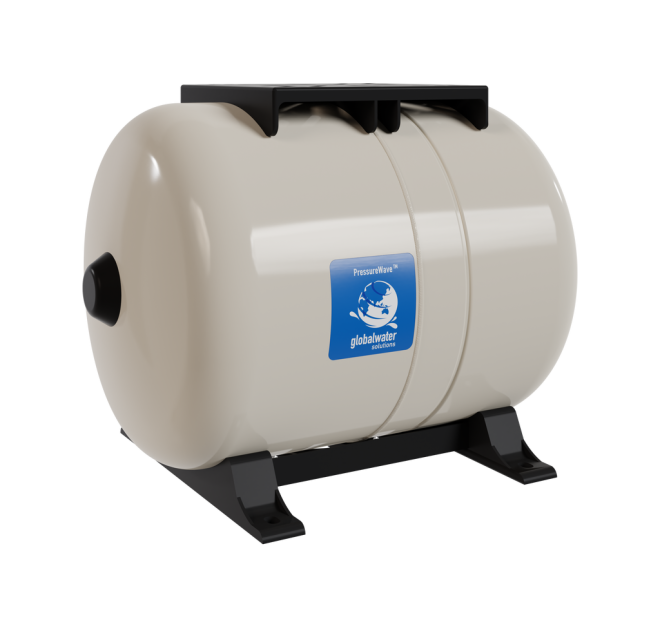

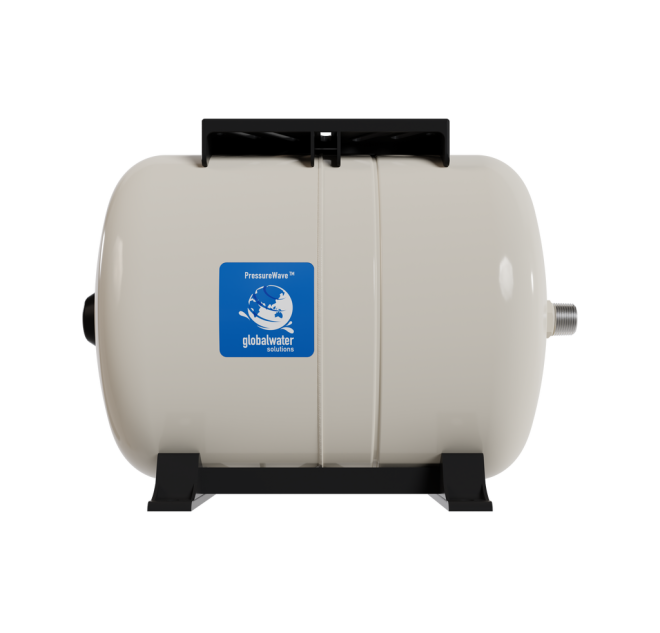

PWB-35LH
Description:
The PressureWave™ 35-liter / 9.25-gallon horizontal pressure tank is built for durability and flexibility in system integration. Its virgin polypropylene liner and high-grade butyl diaphragm, reinforced in key areas, ensure long-lasting performance. The patented stainless-steel water connection offers a dual water/air seal, reducing leaks and maintenance. The brass air valve, secured with an O-ring, enhances reliability.
Pre-charged to 1.9 bar / 28 psi and fitted with a 1" BSPT connection, this horizontal tank is perfect for applications like booster systems and thermal expansion. Its carbon steel shell, coated with dual-layer polyurethane paint, provides excellent corrosion resistance and durability, ensuring reliable operation under pressure.
Pre-charged to 1.9 bar / 28 psi and fitted with a 1" BSPT connection, this horizontal tank is perfect for applications like booster systems and thermal expansion. Its carbon steel shell, coated with dual-layer polyurethane paint, provides excellent corrosion resistance and durability, ensuring reliable operation under pressure.
Features:
-
Volume: 35L / 9.25 Gallon
- Connection: 1" BSPT (M)
- Width: 48.1cm
- Height: 35.3cm
- Diameter: 31.8cm / 12.5 inches
- Weight: 8kg / 17.6lbs
- Color: Almond
-
Horizontal
- Pressure Max: 10 bar / 150 psi
- Temp Max: 90°C / 194°F
- Pressure Pre-charge bar: 1.9 bar / 28 psi
-
Diaphragm design: Maintenance Free
-
Patented stainless steel water connection
-
Virgin polypropylene liner
-
Two-part polyurethane, epoxy primed paint finish
-
Leak-free, O-ring sealed air valve cap
-

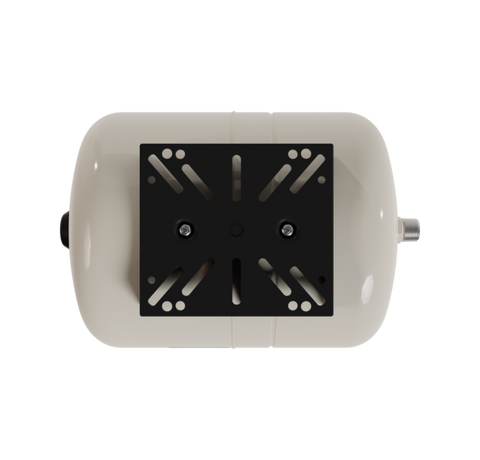

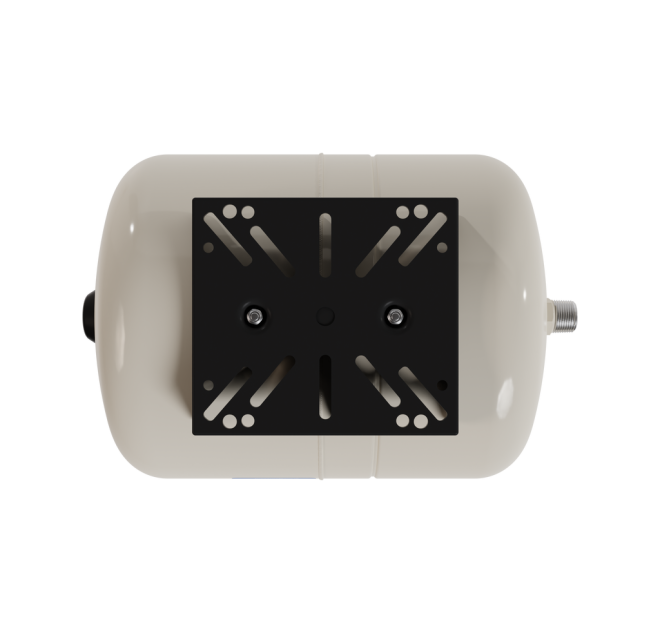

Inline models equipped with reinforced connection plate (RCP)
